Technology S5 Line The ideal industrial robot

3-Axis robots
30 - 800 T

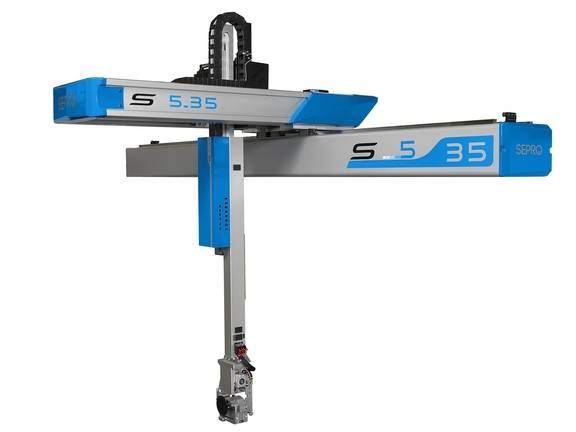

The S5 Line is designed using the best Sepro technology, to make a very well-designed range of high performance 3-axis robots. They are reliable, fast and precise and ideal for complex applications.

Download the brochure

Presentation

The S5 Line robots combined with the powerful Visual 2 control make it possible to drive automation systems with up to 16 axes

Overview

Overview

  • Single-piece frame structure and prismatic guides for rigidity
  • Powerful servomotors and smart software for faster mold in and out times
  • Pneumatic rotation R1 (0-90°) or R2 (0-90°-180°) (option)
  • Electrical cabinet on beam to free space on the floor (option)
  • Choice of transverse or axial layout
  • Y free function in standard version

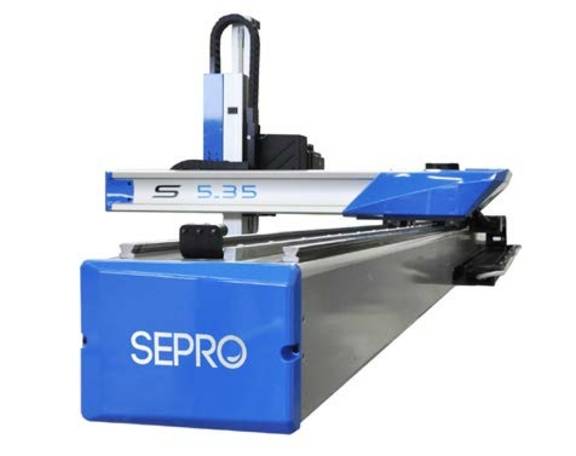

Reliable

Reliable

S5 Line is Sepro’s 5th generation of robots. Building on its position as Manufacturer no.1 in Europe and with 30,000 installations around the world, Sepro offers a highperforming robot with accomplished design.

Rigid

Rigid

The single-piece, frame structure and prismatic linear guide rails bring high rigidity adapted to high accelerations of the mobile parts.

Quick motors and clever software

Quick motors and clever software

Powerful servomotors allied with a clever anti-vibration software ensure maximum accelerations and minimum intervention times.

Precise

Precise

S5 Line reliably carries out your most complex applications (insert placing, stacking, etc.). Our high-torque, standard R1 (0-90°) and optional R2 (0-90-180°) pneumatic rotations offer you great flexibility and facilitate mold access thanks to their compact, built-in design.

The Y free function

The Y free function

Available as standard makes programming easier for parts ejection tracking and enables you to save on gripper costs thanks to a simpler design.

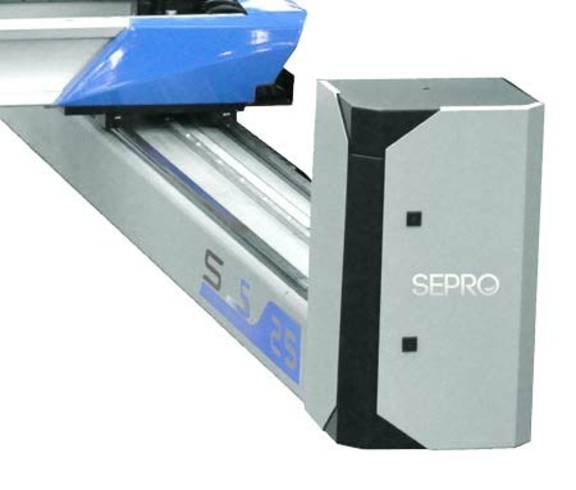

A control cabinet with an innovative, modular layout

A control cabinet with an innovative, modular layout

The compact beam-mounted control cabinet comes as standard on S5-15 and S5-25, and is designed to save floor space. Sepro also offers, as an option on S5-15 and S5-25, a floor mounted control cabinet, to facilitate easier access for maintenance. Both cabinet configurations are available as standard on S5-35 which can automate moulding machines up to 800T. You can choose between saving space on the floor with the compact beam-mounted cabinet, or facilitating easier access for maintenance with the floor mounted cabinet.

Unique elastic unit (Option)

Unique elastic unit (Option)

This mechanical unit protects the gripper and mould during part gripping settings and softens the contact between the gripper and the moulded part in the case of small inaccuracies (a few mm) on the ejection movement or the mould opening. The wrist is mounted on a linear axis parallel to the injection axis. A corrector unit applies elastic pressure on this axis and if the sensor detects that too much force is applied, it automatically brings the robot to a halt.

Control systems

Visual 2
For more complex applications, Visual 2 controls the different peripheral equipment: conveyors, even complex ones, for palletizing parts and distributing interleaves, insert molding or even a sprue cutter station. Learn more
Visual2 - control command
Visual 3
The Visual 3 control system is adapted for complex applications where several peripherals must be managed and it may include more than two 16I/16O boards Learn more

Specifications

S5-15
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm) 1000
Maximum instantaneous speed 5
Maximum load (parts + EOAT) kg 5 - 3(S)
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke 1500 - 4000
Horizontal stroke - Maximum instantaneous speed 4
Ejector stroke 500
Ejector stroke - Maximum instantaneous speed 3
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet
S5-25
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm) 1200
Maximum instantaneous speed 4
Maximum load (parts + EOAT) kg 10-7 (S)
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke 1500 - 6000
Horizontal stroke - Maximum instantaneous speed 4
Ejector stroke 700 - 650(S)
Ejector stroke - Maximum instantaneous speed 3
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke 1400
Vertical telescopic compact arm - Maximum instantaneous speed 4
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 10
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet
S5-35
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm) 1400
Maximum instantaneous speed 4 - 3.5(HL)
Maximum load (parts + EOAT) kg 15 - 20(HL)
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke 2000 - 9000
Horizontal stroke - Maximum instantaneous speed 3.5
Ejector stroke 900
Ejector stroke - Maximum instantaneous speed 3
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke 1800
Vertical telescopic compact arm - Maximum instantaneous speed 4 - 3.5(HL)
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 15 - 20(HL)
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet
S7-45
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm) 2200 - 2500 (LV)
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 30 - 40 (HL)
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke 3000-10000
Horizontal stroke - Maximum instantaneous speed 3
Ejector stroke 1100 - 1300 (LD)
Ejector stroke - Maximum instantaneous speed 2.5
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke 2200 - 2500 (LV)
Vertical telescopic compact arm - Maximum instantaneous speed 3
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 30 - 40 (HL)
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet
S7-55
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm) 2500 - 3000 (LV)
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 40 - 60 (HL)
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke 3500-10000
Horizontal stroke - Maximum instantaneous speed 2.5
Ejector stroke 1500 - 1700 (LD)
Ejector stroke - Maximum instantaneous speed 2
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke 2500- 3000 (LV)
Vertical telescopic compact arm - Maximum instantaneous speed 3
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 40 - 60 (HL)
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet
S7-75
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm) 3600 - 3200 (LD)
Maximum instantaneous speed 3
Maximum load (parts + EOAT) kg 75
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke 4000-10000
Horizontal stroke - Maximum instantaneous speed 2
Ejector stroke 2000 - 2500 (LD)
Ejector stroke - Maximum instantaneous speed 1.8
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet
Vertical telescopic arm
Vertical telescopic compact arm
Vertical stroke (mm)
Maximum instantaneous speed
Maximum load (parts + EOAT) kg
Supplementary part grip - Combined vacuum and/or pressure circuit
Pneumatic rotation R2
Flexibility
Ground control cabinet
VISUAL 2 command
Horizontal stroke
Horizontal stroke - Maximum instantaneous speed
Ejector stroke
Ejector stroke - Maximum instantaneous speed
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Pneumatic rotation R1
app.ui.product_attributes.rotation_pneumatique_r1r2
Digital vacuum switch
Ground control cabinet
Compact end-of-beam control cabinet

Applications

  • Simple Pick & Place
  • Simple stacking applications
  • Complex applications: stacking, advanced palletizing, insert placing, insert molding, vision
