Premium 5X Line Truly flexible

5-Axis robots
30 - 800 T

5X Line robots are designed from latest generation fast and precise Sepro 3-axis Cartesian robots with a Stäubli 2-axis servo wrist. A unique combination that provides a number of solutions for automating injection molding machines. These robots installed on the IMM can be used for unloading and processing parts; they can be located at the end of the IMM to perform post-processing. They can be programmed quickly and efficiently thanks to the power and user friendliness of the Visual 3 control system.

Download the brochure

Presentation

The assurance of high performance and simplicity!

5X Line associated with the power of Visual 3: A perfect solution for the most complex Automation systems with up to 16 axes.

Overview

Overview

  • Rigid single-piece frame structure
  • Prismatic linear guides for high accelerations
  • Powerful servomotors and antivibration software
  • Path tracking function standard thanks to Visual 3
  • Direct or telescopic (except for 5X-15) vertical arm
  • Heavy Load Version (Option) on 5X-35 for carrying loads up to 20 kg
Good-looking mechanics!

Good-looking mechanics!

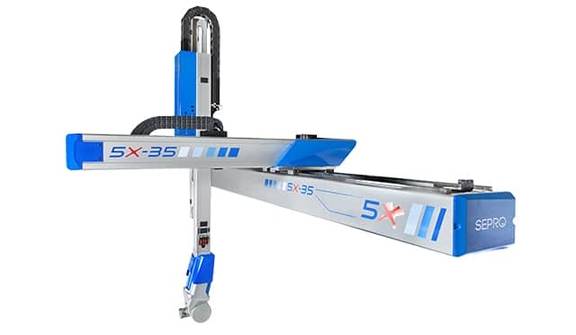

5X line is a range of high-performance and flexible 5-axes industrial robots. It can be adapted to all your unloading and injected part completion applications.

The range comprises 3 models, the 5X-15, the 5X-25 and the 5X-35, to equip your IMMs ranging from 30 to 800 tons.

Rigid

Rigid

The monobloc frame structure and prismatic guide rails ensure greater rigidity, adapted to the high acceleration of moving parts.

Fast motors and intelligent software

Fast motors and intelligent software

Powerful servomotors associated with intelligent, anti-vibration software guarantee maximum acceleration and minimum mold intervention time.

Y Free Function

Y Free Function

A historical standard on all of Sepro’s Cartesian robots: it simplifies the programming of part accompaniment during ejection and can reduce the cost of your EOATs by simplifying their design.

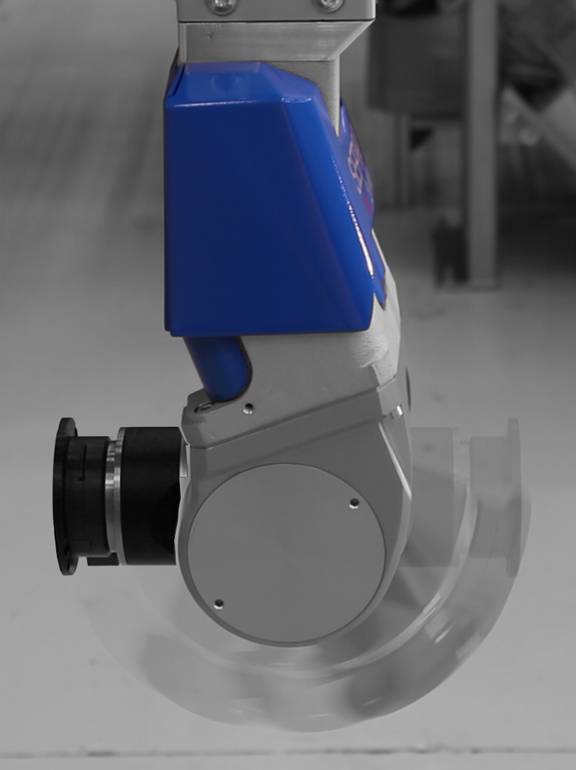

The assurance of a Stäubli servo wrist

The assurance of a Stäubli servo wrist

The Stäubli 2-axes, compact servo rotations guarantee high precision, high speeds and can be easily adapted to even the most elaborate applications: insert placing, complex extraction paths in the mold, path tracking for flame treatment.

3D version of our 5X-25

Control systems

Visual 3
The Visual 3 control system is adapted for complex applications where several peripherals must be managed and it may include more than two 16I/16O boards Learn more

Specifications

5X-15
Vertical stroke (mm) 1000
Maximum instantaneous speed 5
Maximum load (parts + EOAT) kg 5
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Ground control cabinet
VISUAL 3 command
Horizontal stroke 1500 - 4000
Horizontal stroke - Maximum instantaneous speed 4
Ejector stroke 500
Ejector stroke - Maximum instantaneous speed 3
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Digital rotation
Path tracking
5X-25
Vertical stroke (mm) 1200
Maximum instantaneous speed 4
Maximum load (parts + EOAT) kg 10
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Ground control cabinet
VISUAL 3 command
Horizontal stroke 1500 - 6000
Horizontal stroke - Maximum instantaneous speed 4
Ejector stroke 700
Ejector stroke - Maximum instantaneous speed 3
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke 1400
Vertical telescopic compact arm - Maximum instantaneous speed 4
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 10
Digital rotation
Path tracking
5X-35
Vertical stroke (mm) 1400
Maximum instantaneous speed 3.5
Maximum load (parts + EOAT) kg 15 - 20(HL)
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Ground control cabinet
VISUAL 3 command
Horizontal stroke 2000 - 9000
Horizontal stroke - Maximum instantaneous speed 3.5
Ejector stroke 900
Ejector stroke - Maximum instantaneous speed 3
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke 1800
Vertical telescopic compact arm - Maximum instantaneous speed 3.5
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg 15 - 20(HL)
Digital rotation
Path tracking
Vertical stroke (mm)
Maximum instantaneous speed
Maximum load (parts + EOAT) kg
Supplementary part grip - Combined vacuum and/or pressure circuit
Digital vacuum switch
Ground control cabinet
VISUAL 3 command
Horizontal stroke
Horizontal stroke - Maximum instantaneous speed
Ejector stroke
Ejector stroke - Maximum instantaneous speed
Vertical direct arm
Vertical telescopic arm
Vertical telescopic compact arm - Vertical stroke
Vertical telescopic compact arm - Maximum instantaneous speed
Vertical telescopic compact arm - Maximum load (parts + EOAT) kg
Digital rotation
Path tracking

Applications

  • Complex universal unloading applications for ejected parts
  • Post processing of parts
  • Simple Pick & Place
  • Simple stacking applications
  • Complex applications: stacking, advanced palletizing, insert placing, insert molding, vision
  • Path tracking
  • Applications requiring multiple part orientations in space
  • Network communication with peripherals
